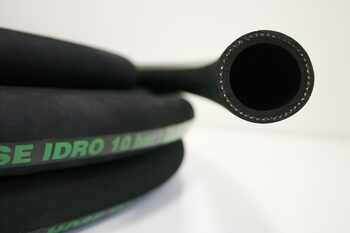

Bevera



Tube: black, smooth, Nitrosamine free SBR rubber compound.
Reinforcement: synthetic textiles with incorporated steel helix.
Cover: in black SBR rubber-based compound without Nitrosamines, resistant to abrasion, aging and atmospheric agents.
Operating temperatures: from -30°C to + 80°C Suction: 0.8 bar (600 mm Hg)



Applications
Suction and delivery of water and inert fluids.
Used in the unloading and loading of large tanks, in irrigation systems, wherever good flexibility and manageability are required.

Model
Internal diameter
(mm)

Outer diameter
(mm)

Operating pressure
(bar)

Burst pressure
(bar)

Weight
(Kg/m)

Radius of curvature
(mm)

BEVERA 10
25
35
10
30
0,83
150
BEVERA 10
30
40
10
30
0,95
180
BEVERA 10
32
42
10
30
1,01
190
BEVERA 10
38
48
10
30
1,16
230
BEVERA 10
40
50
10
30
1,21
240
BEVERA 10
50
60
10
30
1,50
300
BEVERA 10
60
71
10
30
1,94
360
BEVERA 10
70
81,5
10
30
2,59
420
BEVERA 10
75
86,5
10
30
2,75
450
BEVERA 10
80
92,5
10
30
3,02
480
BEVERA 10
90
103,5
10
30
3,66
540
BEVERA 10
100
114
10
30
3,98
600
BEVERA 10
110
124
10
30
4,34
660
